Product Code : 06
Product Description

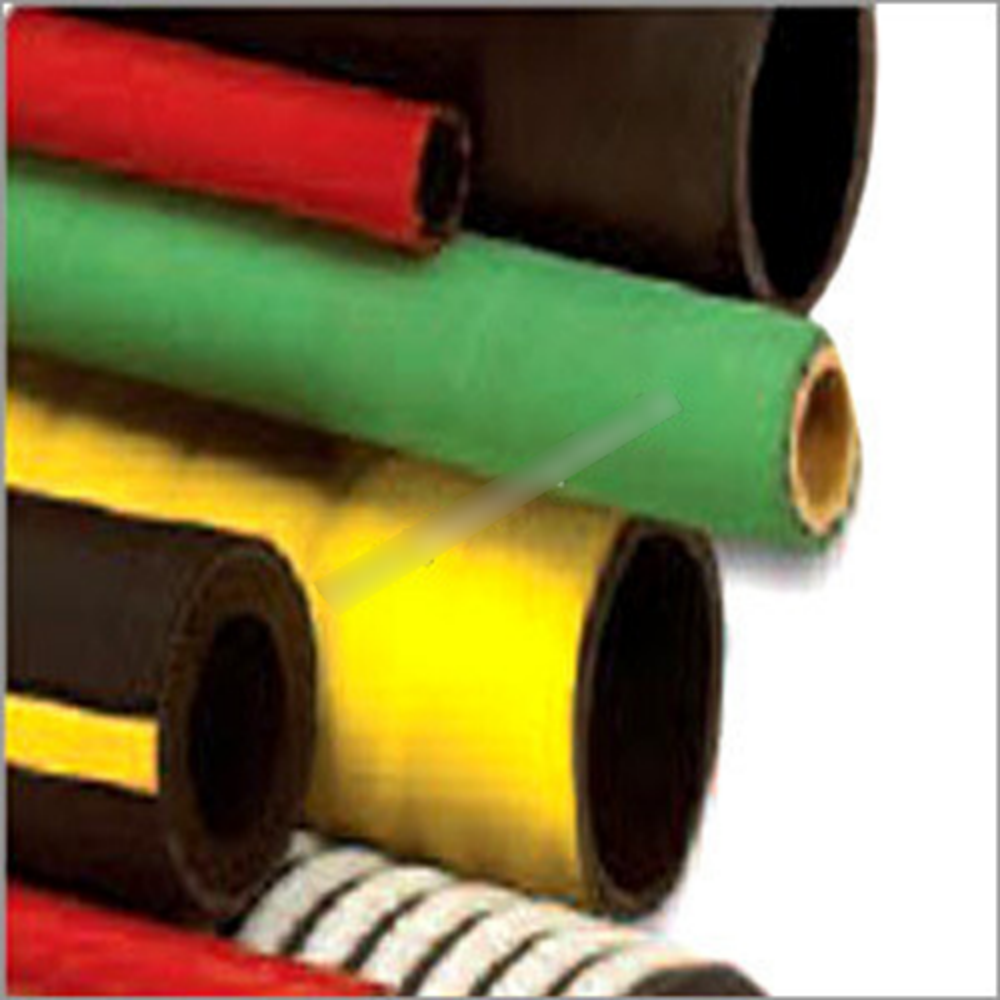

Industrial Hoses

We are among the noted manufacturers and exporters of quality-assured Industrial Hoses. Clients can avail these hoses in various thicknesses, grades and colors as per the variegated requirements of clients. These hoses are reckoned for superior finish, high strength and easy installation. Our offered hoses are widely used for various engineering and industrial applications. We assure to use best quality raw materials in the manufacturing process of these hoses, so that the final output meets with the international quality standards. With the help of our trusted logistics team, we assure timely delivery of Industrial Hoses.

Other information:

  • Industrial Hose
  • Confirming to IS: 3549:1983, CM/L-8507882

Application: For dewatering and delivery purposes during deflooding, handling for waste water, sewerage and mud at maximum working pressure of 0.7, 1.0 and 1.5 MPa.

Type: Type 2 - Hose having smooth bore.

Construction:

Lining

:

Natural/synthetic/blend rubber compound lining for water and abrasion resistance.

Reinforcement

:

Reinforcement of rubber impregnated woven textile applied on bias at approx. 45º angle combination with galvanized steel wire.

Cover

:

Corrugated cloth marked finish outer cover made from natural rubber compound resistance to water, sunlight, UV rays, ozone, abrasion etc.

End Connections

:

Each hose length has soft ends for Clamping or can be supplied with built in nipple and flanges on request.

Pressures:

  • W.P. of 0.7 MPa & min. B.P. of 2.1 MPa .
  • W.P. of 1.0 MPa & min. B.P. of 3.0 MPa .
  • W.P. of 1.5 MPa & min. B.P. of 4.5 MPa .

Nom. Bore
in (mm)

Tolerance on
Nom. bore (mm)

Min. Thk. of
Lining (mm)

Min. Thk. of
Cover (mm)

Min. Thk. of
Filler (mm)

Length of
Soft ends (mm)

25.00

± 1.25

2.00

1.50

1.00

80±5

31.50

± 1.25

2.00

1.50

1.00

80±5

38.00

± 1.50

2.00

1.50

1.00

80±5

45.00

± 1.50

2.00

1.50

1.00

80±5

50.00

± 1.50

2.50

1.50

1.00

80±5

56.00

± 1.50

2.50

1.50

1.00

80±5

63.00

± 1.50

2.50

1.50

1.00

80±5

75.00

± 2.00

2.50

1.50

1.00

80±5

100.00

± 2.00

3.00

1.50

1.50

105±5

125.00

± 2.00

3.00

2.00

1.50

145±5

150.00

± 2.00

3.00

2.00

1.50

145±5

200.00

± .00

3.50

2.00

2.00

145±5

250.00

± 3.00

3.50

2.00

2.00

145±5

W.P. :Working Pressure, P.P. : Proof Pressure, B.P. : Burst Pressure, 1MPa : 10.2Kgf/Cm2 1Kgf/Cm2 :100KN/m2
Length : Mandrel made hose upto 20 mtr., Moulded braided hose in continuos long length.
